제품 상세 정보:
|
| 제품 이름: | HVAC 절연 핀 및 패스너 | 상표: | Huihao Custom |
|---|---|---|---|
| 재료: | 탄소강 | 베이스 사이즈: | 25 밀리미터 또는 30 밀리미터는 표준입니다 |
| 표면: | 구리는 도금처리했고 활성화했습니다 | 네일 지름: | 1.8 밀리미터, 2.0 밀리미터, 2.7 밀리미터, 3.0 밀리미터, 3.4 밀리미터 |
| 샘플: | 지원하다 | 손톱 길이: | 당신의 요구에 따라 |
| 강조하다: | HVAC insulation pins for fiberglass duct,stud welding pins for duct board,fasteners for fiberglass duct wrap |
||
| Attribute | Value |
|---|---|
| Product name | HVAC Insulation Pins & Fasteners |
| Brand | HUIHAO CUSTOM |
| Material | Carbon Steel |
| Base Size | 25mm or 30mm is standard |
| Surface | Copper plated, galvanized |
| Nail Diameter | 1.8mm, 2.0mm, 2.7mm, 3.0mm, 3.4mm |
| Samples | Support |
| Nail Length | As your requirement |

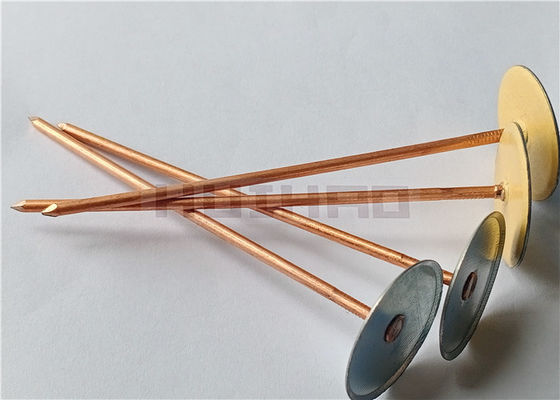

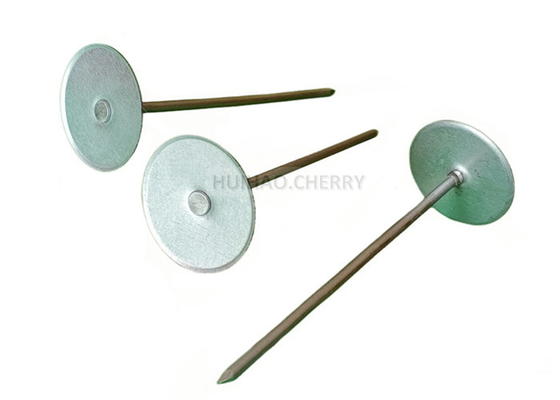

Huihao Hardware Mesh Product Limited is a professional manufacturer of HVAC Insulation Pins & Fasteners, also known as cup head weld pins. These are specially designed to fasten fiberglass duct board or fiberglass duct wrap on the surface of metal ducts.
Cup Head Weld Pins are used with a welding machine and can secure the fiberglass insulation in just one step. Simply place the fiberglass insulation in position, then weld the cup head pin through the insulation to the sheet metal duct for highly efficient installation.
Item: Cup Head Weld Pins
Material: Galvanized Steel
Base Size: 30mm
Nail Diameter: 2.7mm
Nail Length: 25mm
Custom sizes and materials available
Item: Cup Head Weld Pins
Material: Galvanized Steel
Base Size: 30mm
Nail Diameter: 2.7mm
Nail Length: 25mm
Custom sizes and materials available
Item: Cup Head Weld Pins
Material: Galvanized Steel
Base Size: 30mm
Nail Diameter: 3.4mm
Nail Length: 105mm
Custom sizes and materials available
Item: Cup Head Weld Pins
Base Material: Galvanized Steel
Base Size: 30mm
Nail Material: Copper Coated Mild Steel
Nail Diameter: 2.7mm
Nail Length: 125mm
Custom sizes and materials available
Cup head weld pins are typically applied using a capacitor discharge stud welder. The installation process involves placing insulation onto a metal surface, pushing the weld pins through the insulation, and welding the entire fabrication in one efficient step.
These labor-saving HVAC Insulation Pins & fasteners are widely used in commercial and industrial applications for thermal and acoustical insulation systems.
We are a manufacturer located in Hebei province, China.
Yes, we can customize material, surface finish, wire diameter, and length according to your requirements.
Yes, we provide samples for quality confirmation.
Yes, we accept small orders for common sizes.
For inquiries about cup head weld pins, manufacturing equipment, or welding tools, please contact:
