제품 상세 정보:
|
| 이름: | 구리 코팅 컵 헤드 핀 | 재료: | 연강, 스테인레스 강 |
|---|---|---|---|
| 표면 처리: | 아연 도금, 구리 코팅, 광택 처리 | 기본 크기: | 25mm, 30mm |
| 기본 유형: | 종이 없음, 종이 있음, 금 도장 있음 | 핀 디아: | 2.7 mm,3.0mm,3.4mm |
| 핀 길이: | 25mm, 38mm, 50mm, 75mm 최대 300mm | 서비스: | Door to Doot 서비스 |
| 강조하다: | 30mm copper coated cup head pins,fiberglass duct fastening pins,stud welding pins with copper coating |
||

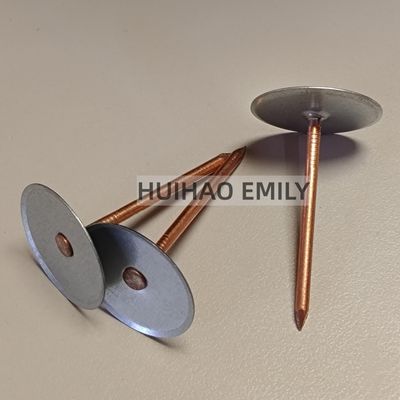

Copper coated cup head pins works with a CD weld machine, after the insulation materials are
ready, we need to weld the pin to the sheet of duct work or other HVAC metal housing, then the
insulation materials are fastened, so it is a labor saving insulation fastenters and widely accepted,
China HUIHAO manufactures all kinds of cup head insulation weld pins, the head can be insulated
with a paper or the pin is insualted with a plastic sleeve.

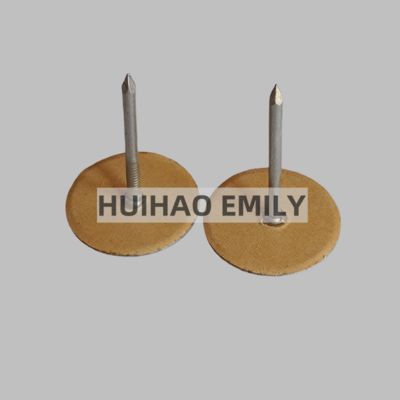

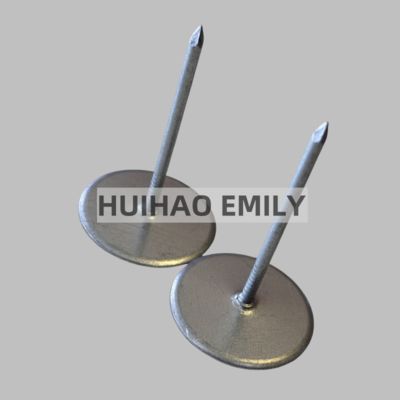

| Cup Head Pins are used for fastening fiberglass duct | |
| Specification |
Base size :25mm,30mm |
| Pin dia :2.7mm,3.0mm,3.4mm | |
| 25mm,38,mm,50mm,75mm,100mm up to 350mm | |
| Material | Pin: galvanzied steel ,copper coated ,stainless steel |
| Base: high stength Galvanized steel, stainless steel | |
| Surface treatement | Copper plated or Galvanized plated. |
| Base type | without paper ,with insulation paper ,with gold seal |
| Products Features |
Simple construction, high efficiency, save manpower; Sharp pins easily go through; Cup head pins with paper washers are used for aluminum foil faced insulation; Cup head pins with sleeves are sued for tin foil faced insulation; Length tolerance ±0.1mm. |
| Packing | Customized according to requirements. |
| Delivery | Within 15-20 days after confirming the deposit |
| Application | fasten the insulation or insulation sheet, such as air duct work insulation, marine insulation |
| BETTER PLATING | weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Quilting Cup Head Insulation Pins are copper plated. |
| REDUCED DOWN TIME | REDUCED DOWN TIME |
| STRONGER WELDS | Hardened steel point assures positive electrical contact for complete sheet to pin fusion. |
| CORROSION RESISTANCE | Plating exceeds current SMACNA standards for corrosion resistance. |
| CORROSION RESISTANCE | Quilting Cup Head Insulation Pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C. |
| VIBRATIONS | Quilting Cup Head Insulation Pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems. |
|
|
Package of Copper Coated Cup Head Pins : >> Package 2. to be your requirements. |
|
HUIHAO company is a insulation fasteners/insulation anchors manufacturing company,
2.self adhesive pins 3.CD weld pins 4.Bimetallic pin 5.Cup head weld pins 6.Lacing Anchors&Quilting pins &lacing hooks washer 7.all kinds of self locking washers, Dome caps. |
|
